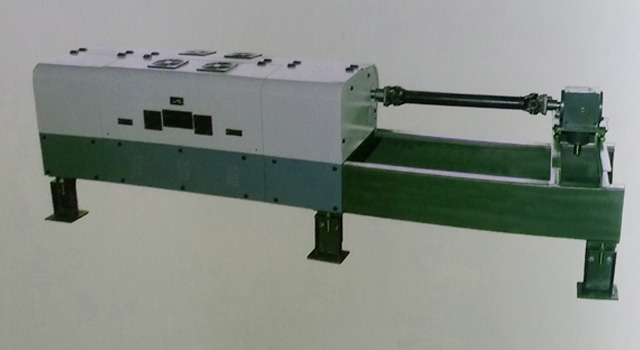

ELECTRONIC JACQUARD

Fabric suitability: suitable for most jacquard-weaving applications such as trademarks, ties, terry cloths, Scarfs, decorative fabrics, curtain cloth, sofa cloth, bedclothes and clothing fabrics, etc.
Field of application: can be matched with kinds of Chinese or foreign rapier, water-jet, airjet and towel weaving machines.
Features: This series of jacquard adopts four eccentric wheels to realize steady transmission, which permits its less noise and longer lifetime. It realizes mechatronical weaving by inputting weaving CAD design patterns to control system via USB interface, which is characterized with quick pattern-shifting, high pattern-controlling precision, easy management and flexible application.

Main Technical Parameters:

Item	Electronic Jacquard
Model	1344~18000 hooks
Rotate Speed	200-650 / 200-650 rpm
Shedding Form	Double Lift, Clean bottom-open shed
Shed Height	Front shed 55-90mm, back shed 90-120mm,adjustable
Driving Mode	Chain/vertical-shaft

Product Overall Size:

Model	(mm) Length	(mm) Width	(mm) Height	Actual hooks
XH1344	1910	1020	1120	1536
XH2688	2350	1020	1120	2688
XH5376	2680	1230	1140	5184
XH6000	2880	1230	1140	6144
XH8000	3420	1230	1140	8256
XH12000	5790	1230	1410	12288
XH16000	6870	1230	1410	16512
XH18000	7258	1230	1410	18432

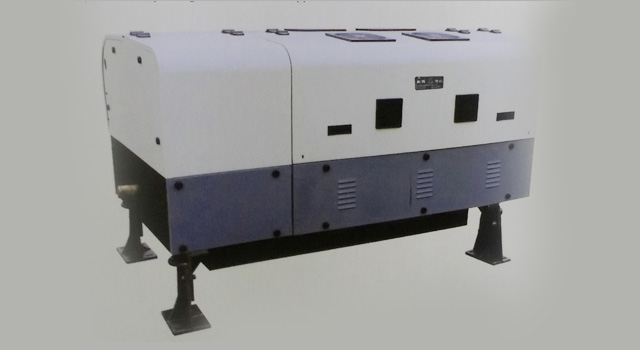

XHS

Fabric suitability: suitable for most jacquard-weaving applications such as trademarks, ties, terry cloths, Scarfs, decorative fabrics, curtain cloth, sofa clothe bedclothes and clothing fabrics, etc.
Field of application: can be matched with kinds of Chinese or foreign rapier, water-jet, airjet and towel weaving machines.
Features: This series of jacquard adopts high & low double shafts, easy to operate and maintain. It’s synchronized with the loom through the drive of high-quality cardan shaft and fully enclosed spiral bevel gear box, and featured with smooth transmission, less noise and longer lifetime. It realizes mechatronical weaving by inputting weaving CAD design patterns to LCD screen controller, which is characterized with quick pattern-shifting, high pattern-controlling precision, easy management and flexible application.

Main Technical Parameters:

Item	Electronic Jacquard
Model	600~2688 hooks
Rotate Speed	200-500 / 200-500 rpm
Shedding Form	Double Lift, Clear bottom-open shed
Shed Height	Front shed 55-100 mm, back shed 90-120mm,adjustable
Driving Mode	Chain/vertical-shaft

Product Overall Size:

Model	(mm) Length	(mm) Width	(mm) Height	Actual hooks
XHS600	1470	1020	1150	640
XHS900	1470	1020	1150	896
XHS1344	1680	1020	1150	1408
XHS2688	2160	1020	1150	2688

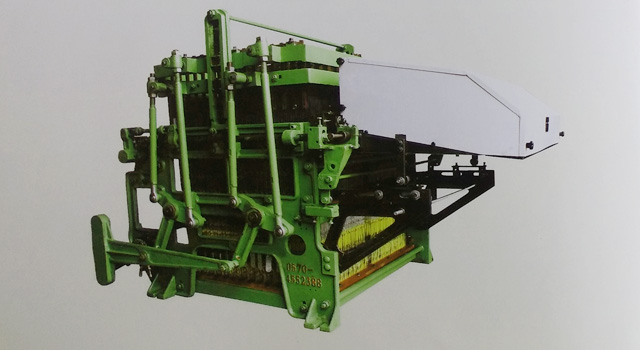

XHST

Fabric suitability: suitable for most jacquard-weaving applications such as trademarks, ties, terry cloths, scarfs, decorative fabrics, curtain cloth, sofa cloth, bedclothes and clothing fabrics, etc.
Field of application: can be matched with kinds of Chinese or foreign rapier looms and towel loom.
Features: digitized needle-selecting jacquard (electronic-cylinder jacquard) is a product existing between electronic jacquard and mechanical jacquard. On the basis of mechanical jacquard, we replace the original mechanical pattern-card needle-selecting system with our self-developed digitized needle-selecting technology, which meets the rapid renewal need of weaving patterns. Meanwhile, we develop a control system with ARM as the control-core and automatic recoil degaussing circuit to accelerate the running speed and reliability of jacquard. Digitized needle selecting jacquard is an economical product with high cost performance.

Main Technical Parameters:

Item	digitized needle-selecting jacquard (electronic-cylinder jacquard)
Model	2900	2400	1900	1480	1344	600
Rows	16 Row Chinese standard		12 Row Korean Standard
Pitch Size	4 x4 mm		5.13×5.13 mm
Shed height	65mm-100mm
Rotate speed	150-200 RPM
Driving mode	Chain

Product Overall Size:

Model	Length (mm)	Width (mm)	Height (mm)	Actual hooks
XHST600	1500	810	1190	632
XHST1344	1500	1110	1190	1224
XHST1480	1700	920	1190	1480
XHST1900	1700	1050	1190	1980
XHST2400	1700	1220	1190	2464
XHST2900	1700	1360	1190	2960

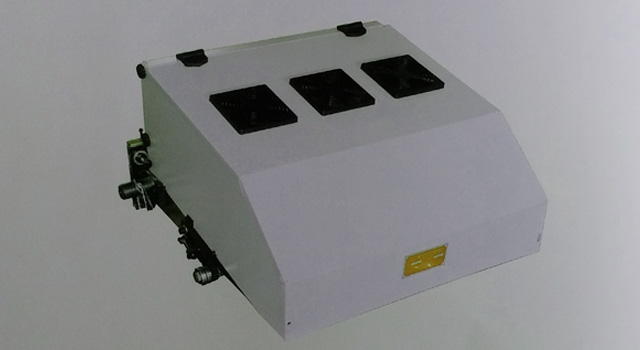

XHDH

Fabric suitability: suitable for most jacquardweaving applications such as trademarks, ties, terry cloths, scarfs, decorative fabrics, curtain cloth, sofa cloth, bedclothes and clothing fabrics, etc.
Field of application: can be equipped onto kinds of Chinese or foreigh mechanical jacquards.
Features: The electronic cylinder adopts our selfdeveloped digitized needle-selecting technology instead of the original mechanical pattern-card needle-selecting system, manages to meet the rapid renewal need of weaving patterns. Meanwhile, we develop a control system with ARM as the control-core and automatic recoil degaussing circuit to accelerate the running speed and reliability of jacquard. Electronic cylinder an economical product with high cost performance.

Main Technical Parameters:

Item	Electronic cylinder
Model	2900 hooks	2400 hooks	1900 hooks	1480 hooks	1344 hooks	600 hooks
Rows	16-row Chinese standard		12-row Korean Standard
Pitch Size	4 x4 mm		5.13×5.13 mm
Rotate speed	150-200 RPM		150-200 RPM

Product Overall Size:

Model	Length (mm)	Width (mm)	Height (mm)	Actual hooks
DH600	500	560	400	632
DT1344	800	560	400	1224
DT1480	620	650	400	1480
DT1900	760	650	400	1980
DT2400	920	650	400	2464
DT2900	1060	650	400	2960

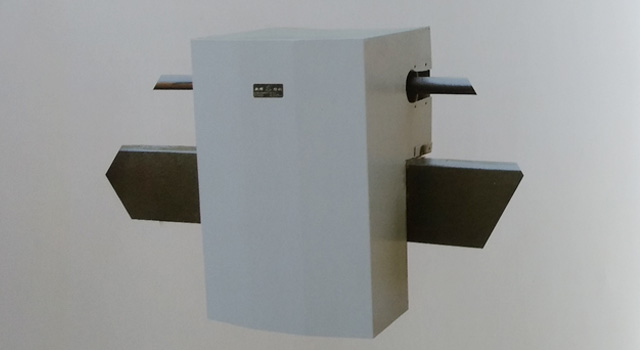

XHBT

Fabric suitability: suitable for various jacquard-weaving selvedge fabrics such as cotton, wool, silk, linen, etc.
Field of application: can be matched with sorts of Chinese or foreign rapier, projectile and air-jet weaving machines.
Usage: can be used to weave characters, selvedges, narrow trademarks and so on. A combination of several needle groups enables simultaneous weaving of two, three or four selvages, meeting different requirements of looms for selvedges.

Main Technical Parameters:

Item	Electronic Selvedge Jacquard
Model	72 144 hooks	72 144*2 hooks	72 72*3 hooks	72 72*4 hooks
Shedding Form	Double lifts, Plain Shed
Shed Height	55mm-110mm
Max Rotate Speed	800 RPM
Driving mode	Driven by chains, applicable in low-speed running condition. Driven by synchronous belts, meeting high-speed requirement.
Overall Dimensions	72 : 370 x 330 x 500 (mm) 144 : 370 x 465 x 500 (mm) 72-hook : L370 x W330 x H550 (mm) 144-hook: L370 x W465 x H550 (mm)
